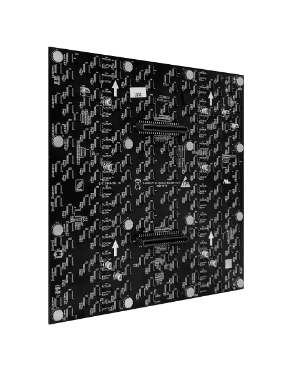

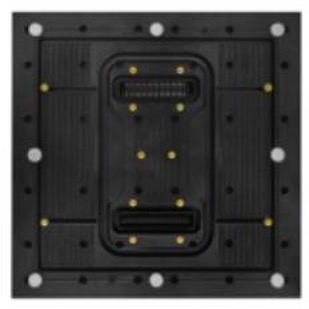

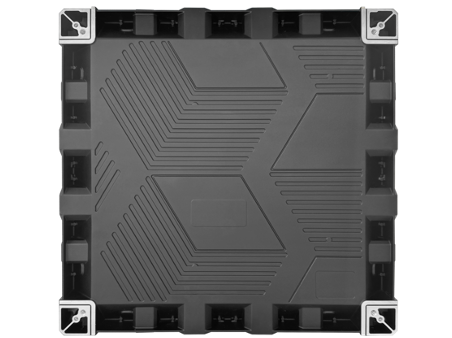

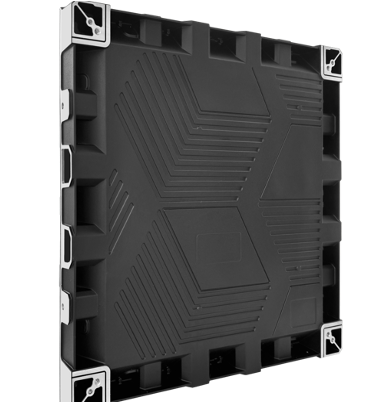

Product : Magnetic Module
Module 250x250

250mm × 250mm

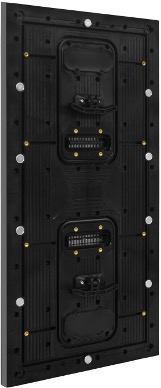

Module 250x500

250mm × 500mm

Illustration Service Design
Schema Maintenance Avant/Arrière

Thought design: Front and Rear Service

Magnetic Module—With simple indoor and outdoor front installation and front maintenance.

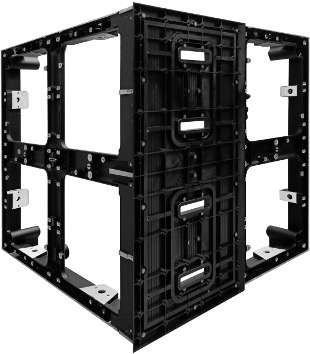

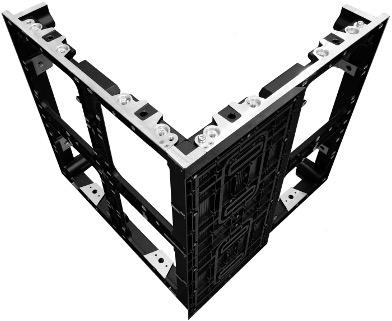

Product : 90 degree splicing
Module 90 degrés vue 1
Module 90 degrés vue 2
Poutre de suspension angle droit

Hanging beam for right angle

Support cabinets 90 degree splicing applications.

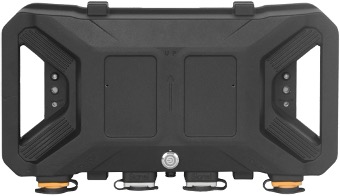

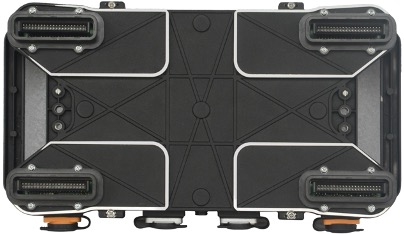

Product : Quick service power box
Power Box vue 1
Power Box vue 2
Power Box vue 3
Power Box vue 4

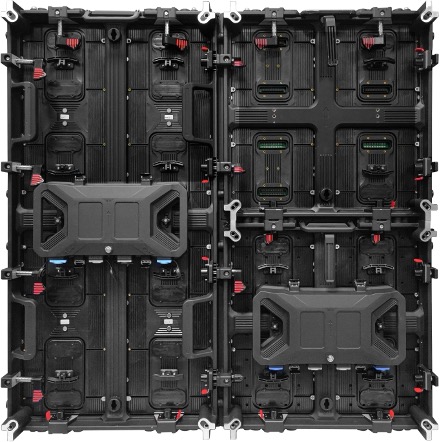

Product : Mix Splicing
Mixed splicing

500mm × 500mm and

500mm × 1000mm cabinet splicing

Exemple de Mix Splicing avec cabinets 500x500 et 500x1000

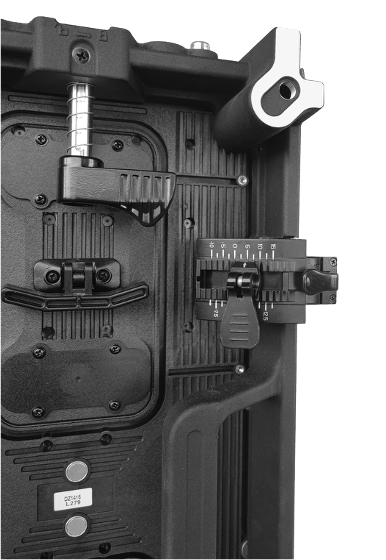

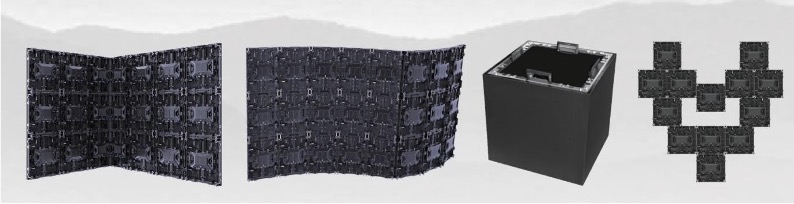

Product : Curved Lock (Option)
Mécanisme Curved Lock sur cabinet LED

Can be provided with curved lock,

angle range: -15° to +15°

Module 250x500

Can take any shape you desire

If you need Curved Lock, please contact your salesman

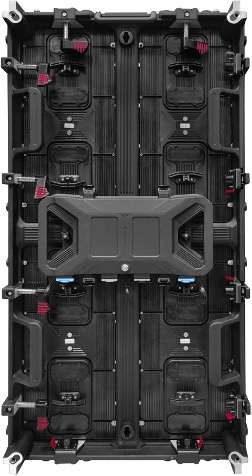

Product : High Performance

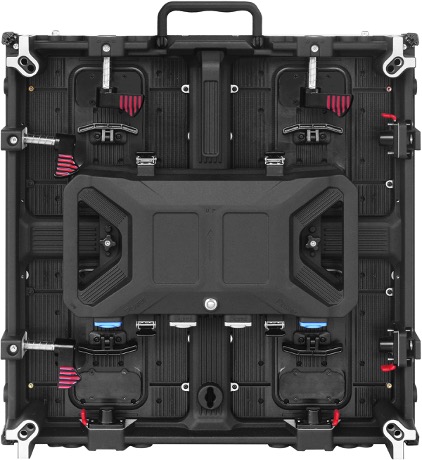

Cabinet LED haute performance vue 1

High Precision, High Strength

& No-Deformed Cabinet

High brightness high

contrast with perfect

performance.

Cabinet LED haute performance vue 2

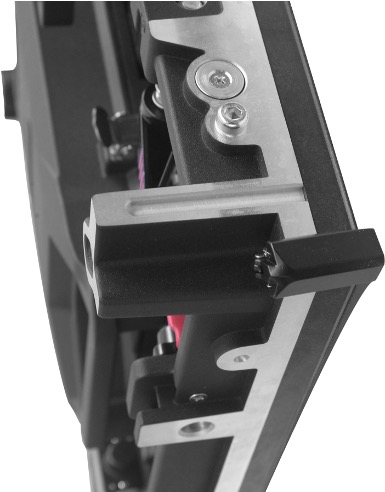

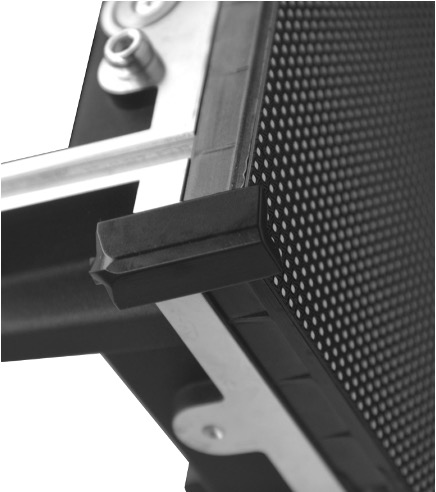

Product : Corner Protector
Corner Protector vue 1
Corner Protector vue 2
Product : Ultra Light
Ultra Light
Cabinet LED Ultra Léger
Cabinet LED 500x500 sur balance (7.8KG)

500mm × 500mm

Cabinet LED 500x1000 sur balance (13.KG)

500mm × 1000mm

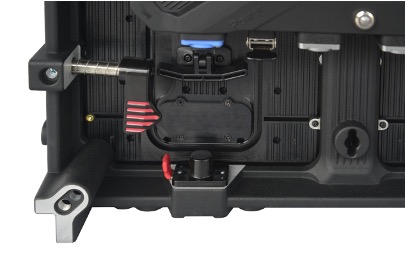

Product : More details

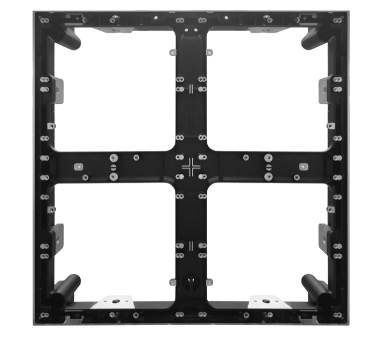

Détail structure frame

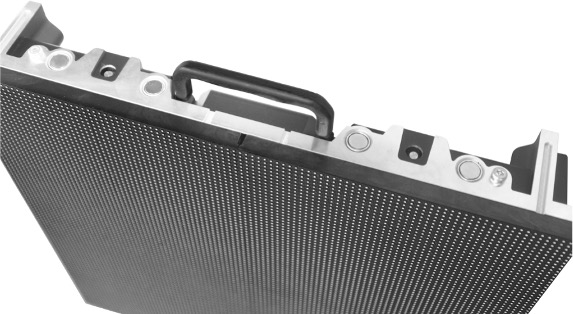

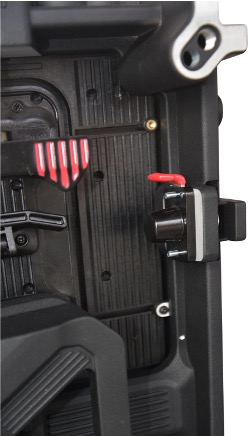

Détail poignée supérieure
Détail connecteurs internes

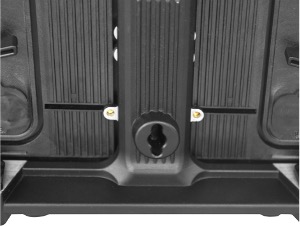

Détail base inférieure
Détail structure frame

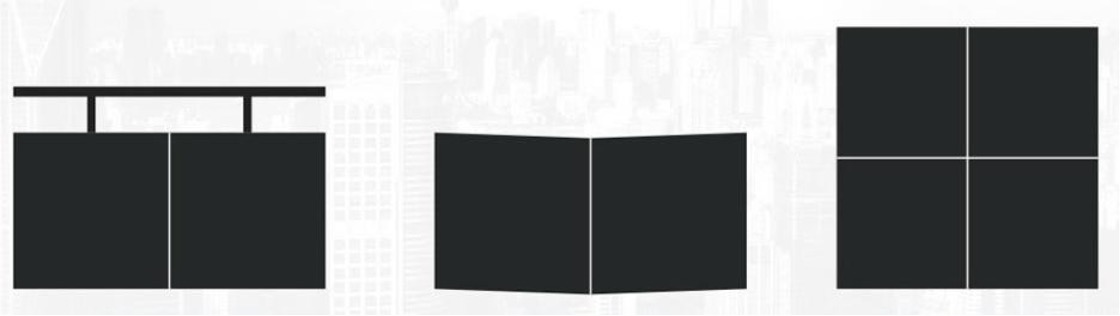

Type of Installation
Types d'installation: Hanging, Arc, Stack

Hanging Installation

Arc Installation

Stack Installation

Technical Parameters
  • Two Cabinet Sizes
  • (Two cabinet sizes available Option)
  • 500*500 / 500*1000mm
  • Two cabinets support mix splicing

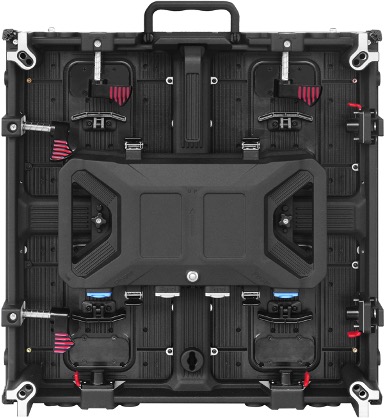

Cabinet LED vue 1 - Paramètres Techniques

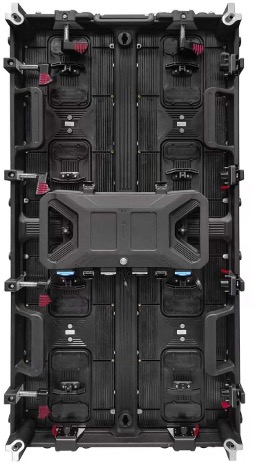

Cabinet LED vue 2 - Paramètres Techniques

Led Display-E-Pro-series (parameters)

Item
Parameter
Pitch
p1.953p2.604p3.125p3.91p2.6p3.125p3.9p4.81
Pitch1.9532.6043.1253.912.63.1253.94.81
LEDSMD 1515SMD 1515SMD 2020SMD 2020SMD 1516SMD 1516SMD 1820SMD 1820
Scan1/321/321/271/161/161/201/161/13
Pixel Density262144dots/M2147456dots/M2102400dots/M265,536 dots/M2147456dots/M2102400dots/M265,536 dots/M243,264 dots/M2
Module Size250*250250*500250*500250*500250*250250*250250*500250*500
LED Cabinet Size500*500mm500*500mm500*500mm500*500mm
500*1000mm		500*500mm500*500mm500*500mm
500*1000mm		500*500mm
500*1000mm
Brightness600-800600-800800-1000800-10005000-55005000-55005000-55005000-5500
IP RateIP54IP54IP54IP54IP65IP65IP65IP65
Angle of visionH150°/ V140°
MaintenanceFront & Rear Maintenance
Weight per Cabinet500x500mm: 7.8KG
500x1000mm: 13KG
Refresh Rate3840HZ / 7680Hz (Option)
Grey Scale14 bit/ 16 bit(Option)
Lifetime100,000 Hours
Control systemNovaStar

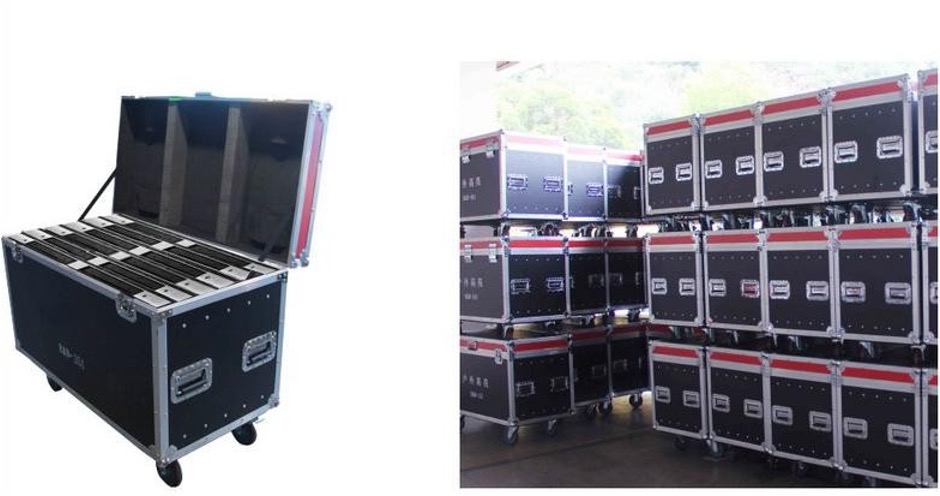

Package
Flight case package ouvert et empilé

Flight Case Package

Motif décoratif bleuRobots installant un mur LED

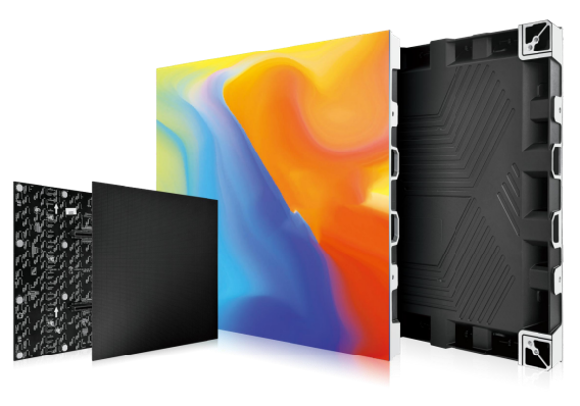

LED X series (Indoor)

Product description

Product features

Package

1. Product Description

This product is the Indoor Fixed Installation X Series, featuring 250x250mm modules and a range of die-cast aluminum cabinet sizes, including 1000x500mm, 1000x250mm, 500x500mm, 500x250mm, and 250x500mm.

The cabinets ensure excellent flatness for seamless splicing, delivering a smooth and precise display surface. Utilizing advanced COB (Chip-On-Board) packaging technology, this series significantly enhances the LED display's reliability, color consistency, and protection.

It also ensures uniform surface lighting, producing delicate and soft images with superior visual quality for an exceptional viewing experience.

Vue éclatée 3 couches module LED
2. Product Features
  • ✓ Module size: 250mm*250mm
  • ✓ Compatible pitch(mm):1.25/1.56/1.95
  • ✓ Cabinet size(W*H)mm:1000*500/1000*250/500*500/500*250, Support 90° led screen, cube led screen, SMD/GOB packaging technology
  • ✓ Module no plastic housing or wire design, high precision, high stability, beautiful interior, convenient module assembly, high surface flatness of the screen; quick installation and easy maintenance
  • ✓ Support double backup of power supply and control system
  • ✓ Front and rear installation, front service, saving space and cost, support different sizes of cabinets mixing.
3. Cabinet Picture

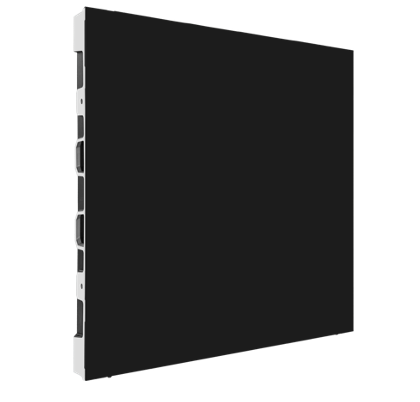

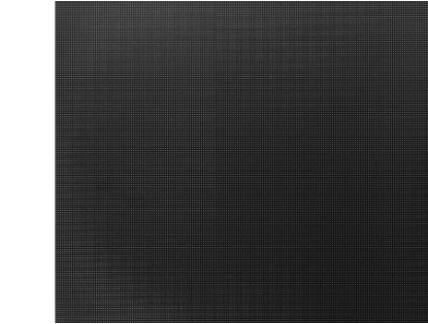

Cabinet LED vue de face

Front view

Cabinet LED vue de dos

Back view

4. Module Picture
Module LED vue éclatée
Module LED vue de côté 1

Side view

Module LED vue de côté 2

Side view

LED X Series (parameters)

ItemP1.25-COBP1.56-COBP1.95-COBP.35-COBP.95-COB
TechnicalPixel Pitch (mm)1.251.56251.9531.9531.953
LED ConfigurationCOB1R1G1BCOB1R1G1BCOB1R1G1BCOB1R1G1BCOB1R1G1B
Module Size (W x H) mm250*250250*250250*250250*250250*250
Module Resolution (W x H)200*200160*160128*128128*128128*128
Cabinet Size (W x H) mm500*500*50500*500*50500*500*50500*500*50500*500*50
Cabinet Resolution (W x H)400*400320*320256*256256*256256*256
Physical Density (dot/m²)640000409600262144262144262144
Cabinet MaterialDie Casting Aluminum
Scanning Mode1/501/401/641/161/16
Cabinet Flatness (mm)≤0.10
Grey Scale (Bit)14
Protection LevelIP65
Installation/Service MethodFront or back installation/Front service
ItemP1.25-COBP1.56-COBP1.95-COBP.95-COBP1.25-COB
OperationBrightness500-700cd/㎡2000cd/㎡
Color Temperature3200-9300K
Brightness Uniformity≥98%
Horizontal/Vertical View Angle≥140°/≥120°
Contrast Ratio≥8000:1
Refresh Frame Frequency50/60Hz50/60Hz50/60Hz50/60Hz50/60Hz
Max Refresh Rate≥3840Hz≥3840Hz≥3840Hz≥3840Hz≥1920Hz
Input Voltage AC110-220V110-220V110-220V110-220V110-220V
Cabinet Max Power Consumption≤460W/㎡
Cabinet Aver. Power Consumption≤210W/㎡
Working Temperature-20℃ - +45℃
Working Humidity10% - 95%RH
